Project Description

  1. RIS 172kV Wall Bushing
  2.  Application: indoor – indoor, outdoor – indoor, outdoor – outdoor
  3.  Standard: IEC 60137 – 2017
  4.  Inner Insulation Type: RIP & RIS. According to requirement.
  5.  External Insulation Type: Polymer (silicone rubber with Uv protection) & Porcelain
  6.  Rated Current: 630A – 12,000A
  7.  BIL – 750kV
  8.  Power-frequency withstand voltage (dry) – 325kV
  9.  Dielectric dissipation factor (tan δ)- ≤0.4%
  10.  Partial discharge (pC)- ≤5 pC
  11.  Test tap is be provided.

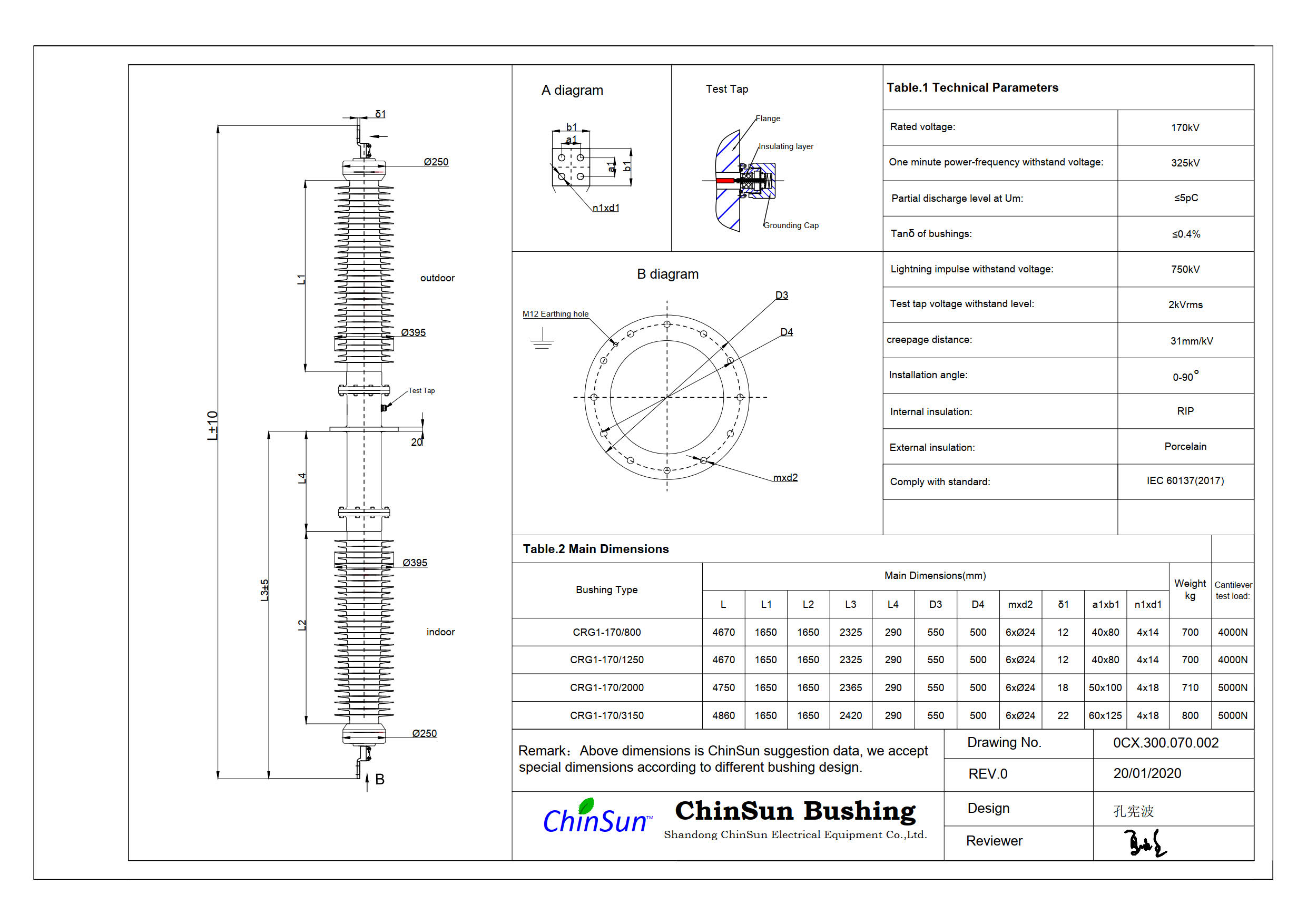

170kV porcelain wall bushing

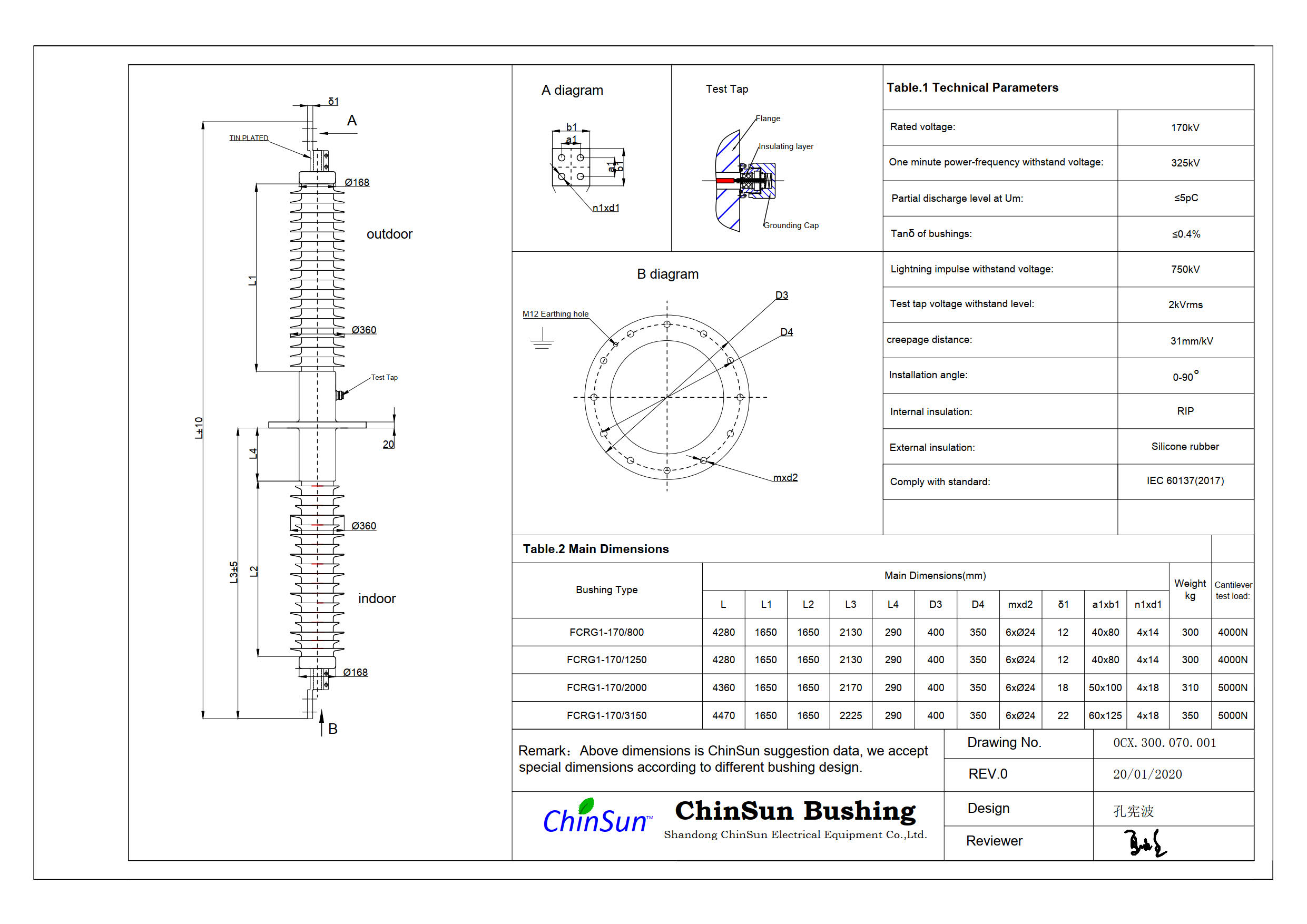

170kV polymer (silicone rubber) wall bushing

China Insulated Bushings Supplier – ChinSun®. We offer 12kV, 24kV, 52kV, 72.5kV, 100kV, 123kV, 145kV, 170kV, 245kV, 300kV, 362kV, 420kV, 550kV RIP Transformer Bushings. Also, we offer RIS Bushings for Transformers, Wall Entries and high current (25kA) bushings on request.

PDF display:

1- Transformer Bushing Parameter Catalogue 52kV to 550kV

2- Transformer High Current (up to 25kA) Bushing 12kV to 52kV

3- Wall Bushing Parameter Catalogue 52kV to 362kV

4- ChinSun® Manufactory introduction

PDF files on request on Office email!

China Bushings Manufacturer & Producer ChinSun® supplies MV & HV bushings dry type bushings for transformers, wall, and oil to oil bushings. ChinSun® also produces Oil SF6 Bushings, GIS Bushings per request. Certified and proofed excellent quality China Bushings with competitive price.
