362kV RIP & RIS Bushings for Transformer:

Rated Voltage – 362kV

Rated Current – 630A to 3150A

BIL- 1175kV peak value

SIL – 950kV peak value

Power frequency Withstand Voltage – 560kV r.m.s.value

Partial discharge ≤ 5 pC

Dielectric dissipation factor (tanδ)≤0.4%

Seismic Condition meets with IEC TS 61463

Test tap can be designed to 2 pieces quantity.

External Insulation type: Grey polymer (silicone rubber with Uv protection) & brown Pocelain.

362kV porcelain bottom connection type transformer bushing

362kV porcelain draw lead type transformer bushing

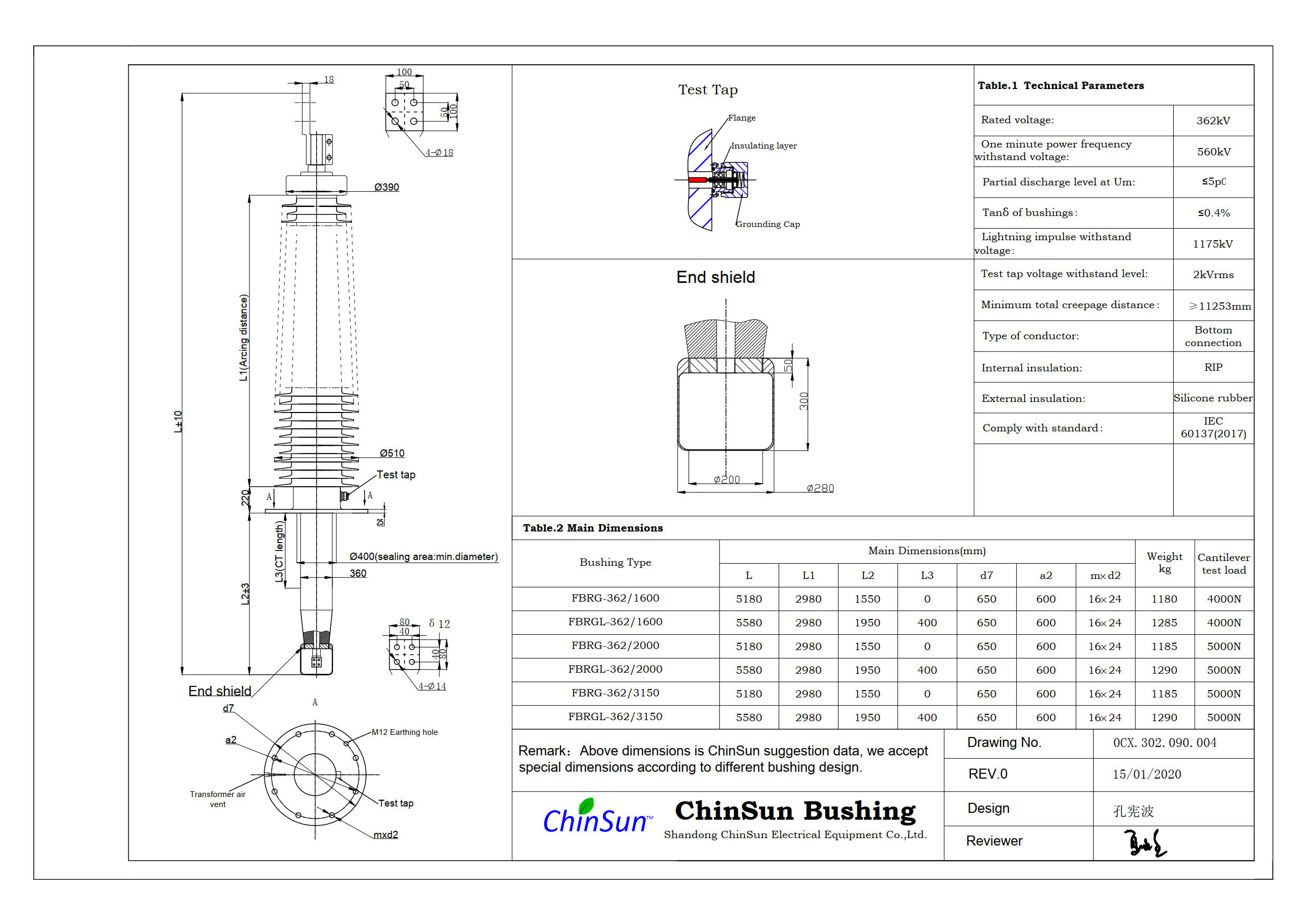

362kV polymer (silicone rubber) bottom connection type transformer bushing

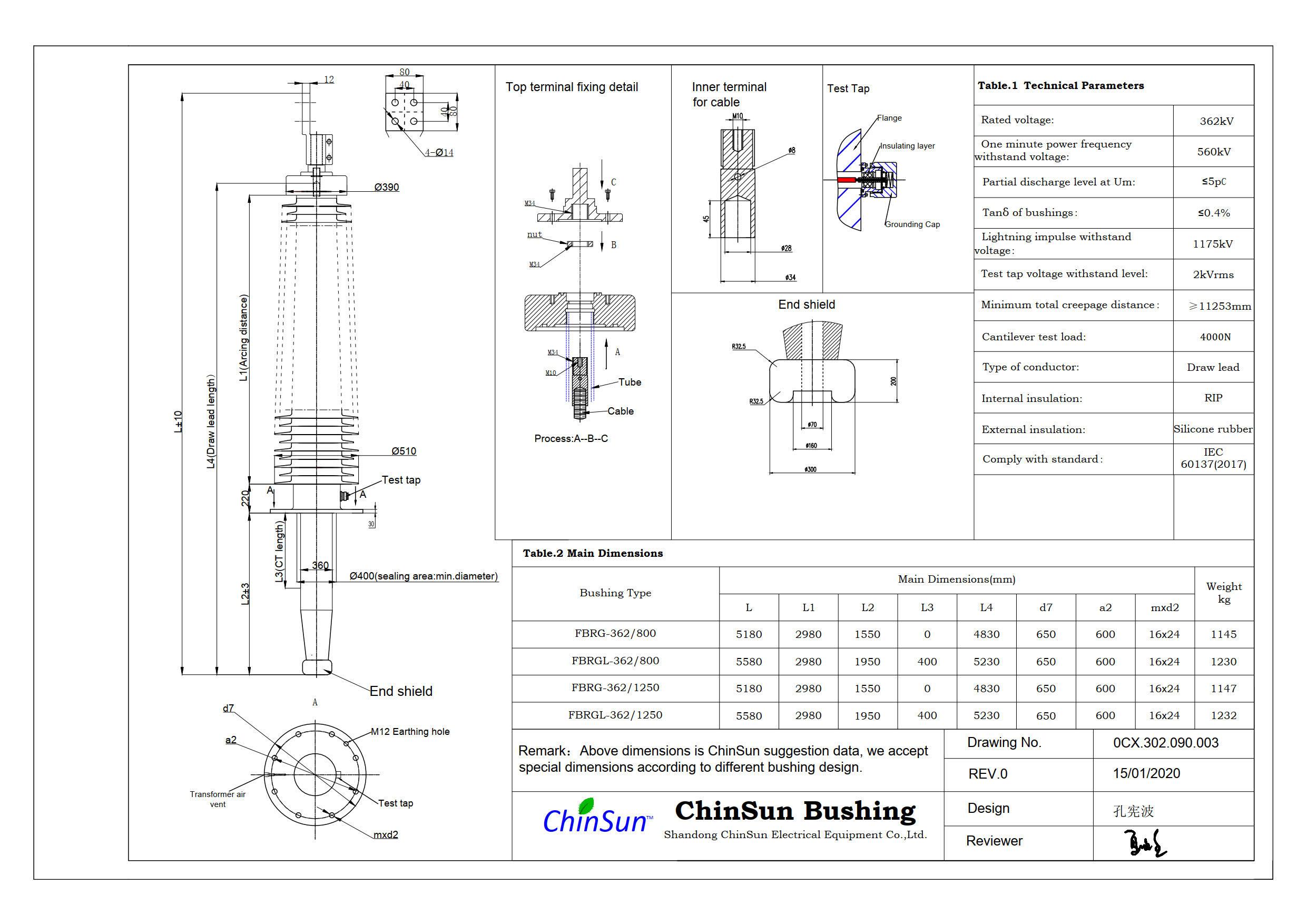

362kV polymer (silicone rubber) draw lead type transformer bushing

China Insulated Bushings Supplier – ChinSun®. We offer 12kV, 24kV, 52kV, 72.5kV, 100kV, 123kV, 145kV, 170kV, 245kV, 300kV, 362kV, 420kV, 550kV RIP Transformer Bushings. Also, we offer RIS Bushings for Transformers, Wall Entries and high current (25kA) bushings on request.
